Perkins 20 Kva 25kva 50kva 80kva Super Silent Diesel Generator Open Diesel Generator
Ai Power Perkins generator set adopts Perkins engine as the power source. It’s one of the world’s leading diesel engine manufacturers since 1932, produced nearly 400,000 units for one year and quickly occupied the world market for the full specification, good structure, reliable
performance, easy maintenance, low exhaust and long period maintenance. Perkins service network is in more than 180 countries and regions.
| Engine manufacture | Perkins Engines Company Limited |
| Engine brand | Perkins |
| Engine model | 1104C-44TAG2 |
| Engine speed (rpm) | 1500 |
| | Prime power | Standby power |
| Gross engine power (kWb) | 93.6 | 103 |
| Typical Genset electrical (KW) | 81 | 90 |
| Cylinders | 4-cylinder, vertical in line |
| Cycle | 4 stroke |
| Induction system | Turbocharged, air-to-air charge cooled |
| ICombustion system | Direcct injection |
| Compression ratio | 18.23:1 |
| Bore * Stroke (mm) | 105*127 |
| Cubic capacity (Litre) | 4.4 |
Ai Power silent generator is widely used in residential area which require quiet environment, its reasonable and elegant design not only reduce the noise to applicable to the environment protection, but also a good view on the road. Our 10kva to 650kva generator adopts normal silent canopy, from 650kva to 1500kva adopts 20ft container canopy, the higher power adopts 40HQ container canopy.

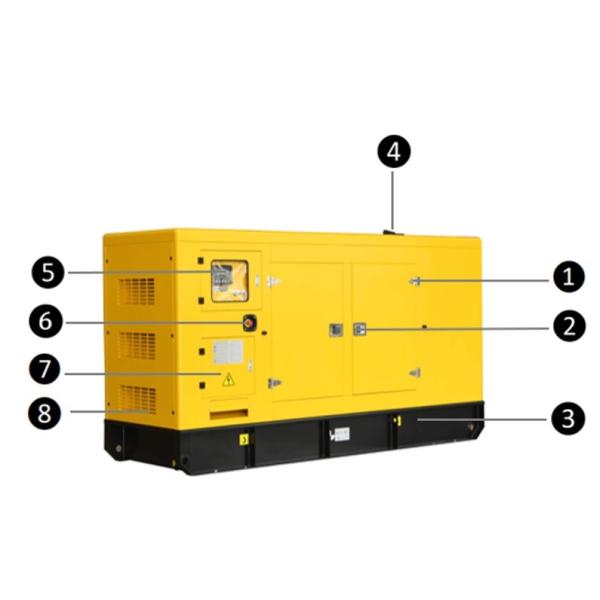

- Air inlet cooling system
- Stainless door lock
- Fuel cap lock
- Tow holes
- engine
- radiator
- insulation and soundproof materials
- maintenance door
- Durable stainless steel hinges
- Durable stainless steel hinges
- Strong base fuel tank
- High performance exhaust silencer
- Deepsea control system
- Emergency stop
- High quality circuit breaker and terminal output
- Fresh air inlet cooling system

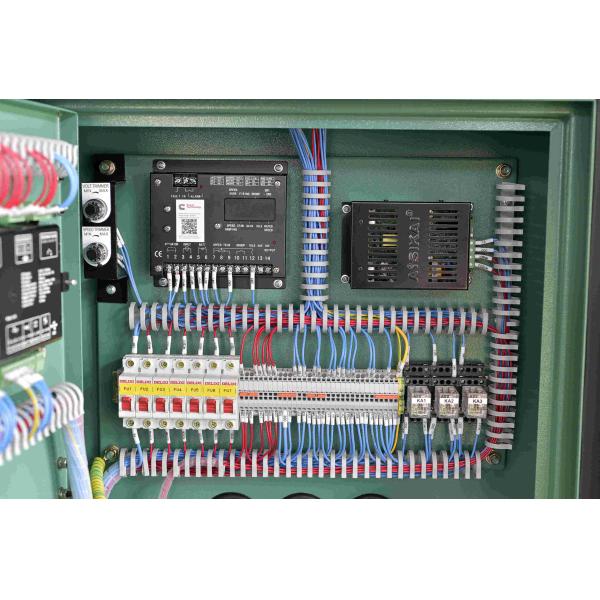

Control Panel Introduction
Protection function:
•Low oil Pressure
•High water temperature
•High voltage and low voltage
•Over current
•Overspeed
•Volt adjuster and frequency adjuster.
•Emergency stop
•Low fuel alarm and shutdown
•Low coolant alarm and shutdown
FAQ:
1. What's our power capacity range of diesel generators?
Answer: We can offer the range from 10kva~3000kva.
2. What's your warranty?
Answer: One year or 1000 hours, which one comes first.
3. Does your generator have global warranty?
Answer, Yes. Gensets powered by USA famous engine, with UK famous engine, Doosan, Volvo, Iveco have the global warranty service. And the alternators Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.
4. Can you use our logo?
Yes, we can use customer's logo instead of ours.
